plastic drinking straws pipe machine

FOB Reference Price:Get Latest Price
$18,800.00 - $27,000.00 / Set | 1 Set/Sets (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Condition:
New
Application:
straw
Plastic Processed:
PP
Model Number:
ML13A
Screw Design:
3
Place of Origin:
Jiangsu, China
Brand Name:
Marrow
Voltage:
220V/380V
Dimension(L*W*H):
1600*9000
Weight:
3000kg
Certification:
CE ISO
straw machine:
extruder machine
After-sales Service Provided:
Engineers available to service machinery overseas
Power(W):
11kw
Automatic Grade:
Automatic
Supply Ability
Supply Ability:
5 Set/Sets per Month
Packaging & Delivery
Packaging Details
plywood packing
Port
SHANGHAI/NANJING
Lead Time :
40 days

 ML13A asML13A sample.jpg

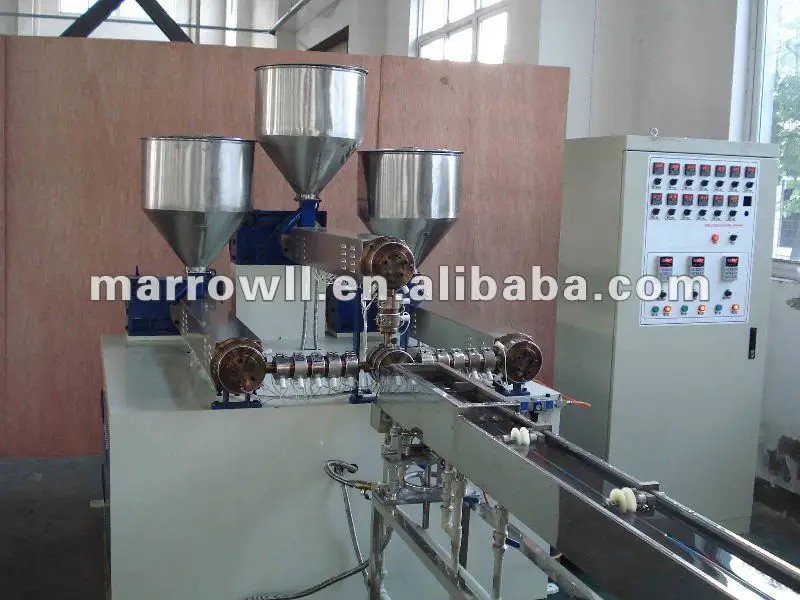

plastic drinking straws pipe machine

DESCRIPTION

 Model  ML13A is a straw extrusion line, composed of three-color co-extruder machine and die, size setting and water cooling unit, haul-off unit, rotary cutter unit, air compressor, The machine can produce all kinds size of three-color drinking straw, spiral strip straw, all the machines controls base with the control elements ergonomically adapted to permit easy operation.





TECHNICAL FEATURE

1.       The extrusion die can be special designed and easy exchanged to produce pipe and shaping stuff,

2.       Water bath in stainless steel can be adjusted in three planes ,

3.       The haul-off unit can be belt.

4.       Fitted with single rotary cutter.

5.       Conveyor device(you may select if you want)

SPECIFICATIONS

Model

ML13A

Parameter of main screw

φ50mm(diameter) ×3

Parameter of sub- screw

0

Capability

30~60Kg/h

Power

supply

Main motor

11kW×3    380v    50Hz (VFD)

Haul-off motor

0.37kW×2(VFD)

Cutting motor

0.75kW×1(VFD)

Temp.controller

16zone

Heating power



Length of cooling container

3400mm/6400mm

Specifications

diameterφ3~15mm   thickness0.10~0.3mm

Machine weight

3000KG

Dimension

1600mm(W)×9000mm(L)

Other specifications are customizable

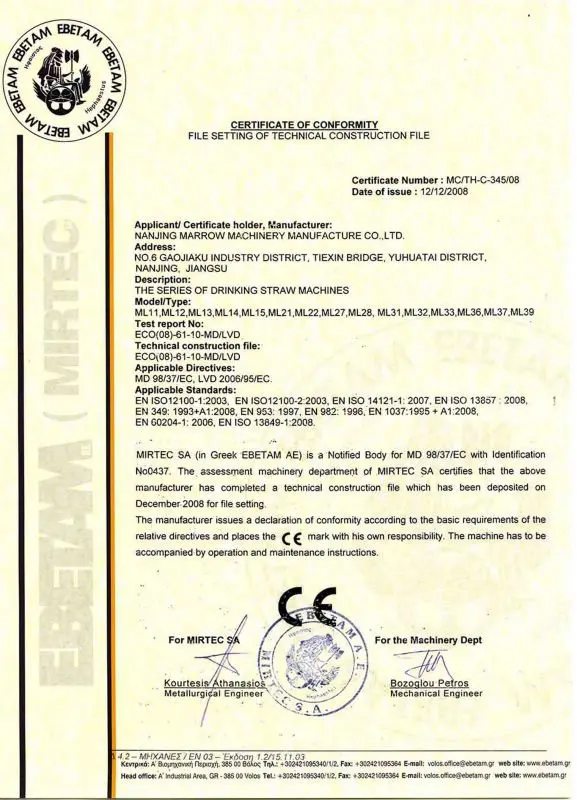

marROW CE1.jpg091.JPG
